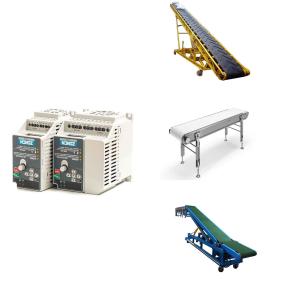

ZONCN T200 Series Low Voltage Frequency Inverter 2.2KW For Conveyor Belt
T200 series 2.2kw advanced inverter drive vfd 50/60Hz
Basic product introduction:
The ZONCN T200 series drives offer several advantages that make them an ideal choice. First of all, it has an affordable price and is suitable for limited budgets. Its compact design makes it suitable for applications where space is limited. In addition, it is very simple to install and can be quickly deployed and launched.
The ZONCN T200 series drives are also equipped with a keyboard with RJ45 interface for easy operation. Users can easily set and adjust the parameters of the inverter through the keyboard to improve the convenience of operation.
This series of inverter has built-in EMC filter, which can effectively suppress electromagnetic interference and ensure the stable operation of equipment. In addition, it also has an automatic voltage regulator function, which can automatically adjust the output voltage to ensure the stable operation of the motor under different load conditions.
The ZONCN T200 series inverter also has a variety of protection functions, including overload protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, short circuit protection and phase loss protection. These protection functions can effectively protect the motor and equipment, improve the reliability and safety of the system.
In addition, the ZONCN T200 series drives also support PG cards, which can be used in conjunction with the encoder for more precise speed and position control.
To sum up, the ZONCN T200 series inverter is cheap, compact, easy to install, equipped with RJ45 interface keyboard, built-in EMC filter, automatic voltage regulation, with various protection functions, and support for PG card. These advantages make it ideal for a wide range of industrial applications.
Technical characteristic:
T200 model specifications:
| Model | Input voltage | Rated output power(kw) | Rated input current(A) | Rated output current(A) | Motor power(kw) |
| T200-0R4G-2 | AC 1PH 220V± 15% | 0.4 | 5.4 | 2.5 | 0.4 |
| T200-0R75G-2 | 0.75 | 7.2 | 5.0 | 0.75 |
| T200-1R5G-2 | 1.5 | 10.0 | 7.0 | 1.5 |
| T200-2R2G-2 | 2.2 | 16.0 | 11.0 | 2.2 |
| T200-0R4G-4 | AC 3PH 380V±15% | 0.4 | 3.4 | 1.2 | 0.4 |
| T200-0R75G-4 | 0.75 | 3.8 | 2.5 | 0.75 |
| T200-1R5G-4 | 1.5 | 5.0 | 3.7 | 1.5 |
| T200-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 |
| T200-3R0G-4 | 3.0 | 8.5 | 7.0 | 3.0 |
| T200-3R7G/5R5P-4 | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| T200-5R5G/7R5P-4 | 5.5/7.5 | 15.0/20.0 | 13.0/17.0 | 5.5/7.5 |
| T200-7R5G/11P-4 | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 |
| T200-11G/15P-4 | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
| T200-15G/18.5P-4 | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |

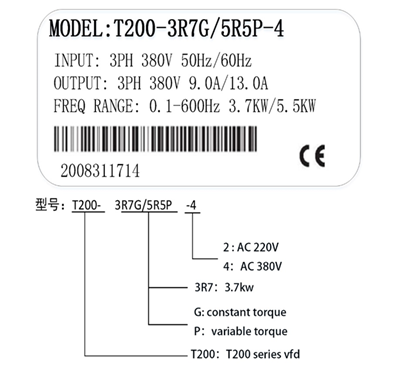

Description of the T200 nameplate:
FAQ:
Q1: What is the minimum order quantity (MOQ) required?
A: The MOQ is set at 1 piece.
Q2: What are your payment terms?
A: We require 100% payment via T/T before delivery.
Q3: How long does it take for delivery?
A: Typically, the delivery time is within 15 days after receiving full payment.
Q4: How can I place an OEM/ODM order?
A: If your order quantity meets certain criteria, we are pleased to offer customization services. We have established partnerships with over forty manufacturers.
