NZ100 ZONCN Inverter VFD 220v 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 50hz 60hz With RS485

Product Categories

Wuhu ZONCN Automation Equipment Co., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: NZ100 ZONCN Inverter VFD 220v 075kw 15kw 22kw 37kw 55kw 75kw 50hz 60hz With RS485
Brand: ZONCN
Price: 1 USD

Brand Name : ZONCN

Model Number : NZ100-1R5G-2

Certification : KC; CE

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 100,000 pcs/month

Delivery Time : 7-30 days

Packaging Details : inside: box; outside: carton

Product : variable frequency inverter

Brand : ZONCN

Series : NZ100

Communication : RS485 MODBUS

Control mode : V/F control

External keyboard : Available

Size : Mini

Voltage : 220v; 380v

Contact Now

NZ100 ZONCN Inverter VFD 220v 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 50hz 60hz With RS485

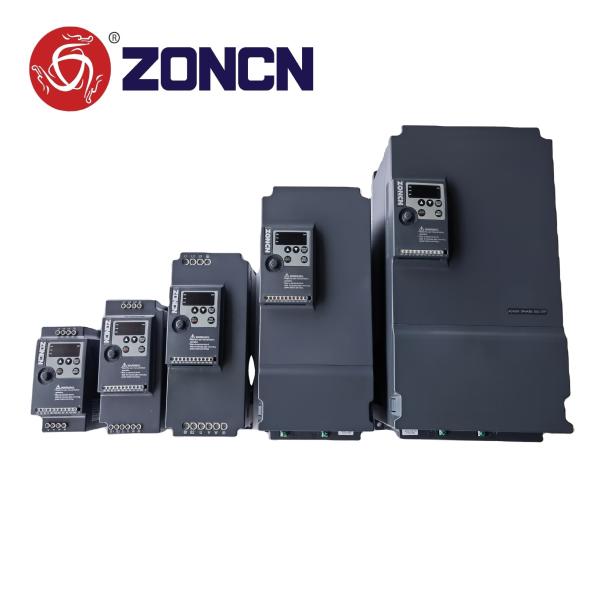

ZONCN NZ100 series VFD Inverter

Comprehensive Protection:Nine built-in protections safeguard your equipment from overloads, overheating, and more.
Multi-Functional Control:Intelligent parameter setting and RS485 communication for precise motor control and monitoring.
Energy Efficient: Soft start and soft stop features reduce energy consumption, making it an eco-friendly choice.
Compact Design: Mini size and lightweight, this inverter is easy to install and saves space in your setup.

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.

VFD inverter's Dimension

NZ100 ZONCN Inverter VFD 220v 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 50hz 60hz With RS485

VFD inverter's Wiring Diagram

NZ100 ZONCN Inverter VFD 220v 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 50hz 60hz With RS485

ZONCN VFD Application

NZ100 ZONCN Inverter VFD 220v 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 50hz 60hz With RS485
